Feature

Welded structure by thick profiled steel, stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.

Y axis with double motor driving ensure stable and smooth movement of the machine.

High precision rack gear transmission ensures fast speed and high accuracy.

Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.

Spindle with high power enables powerful cutting strength.

Function of continuous working at stop point by power failure.

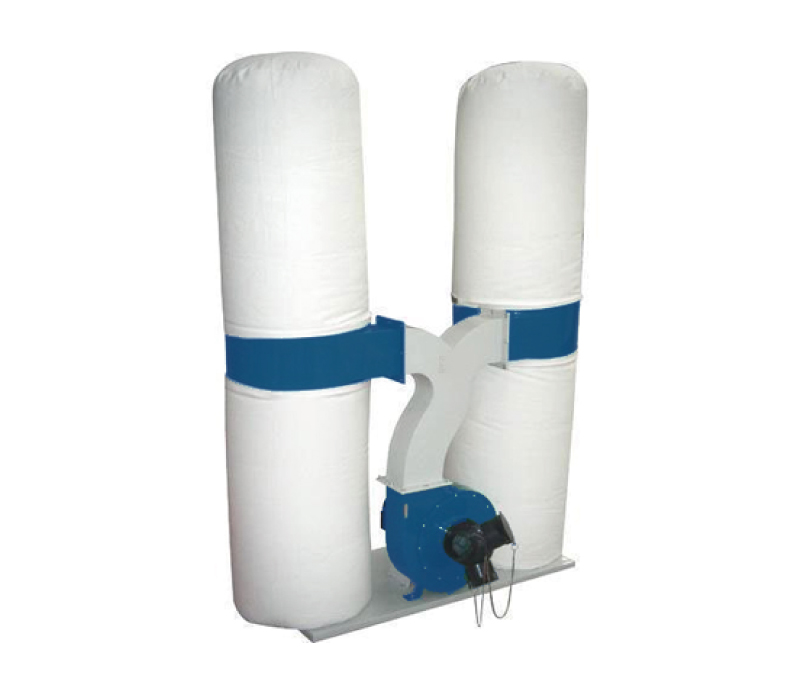

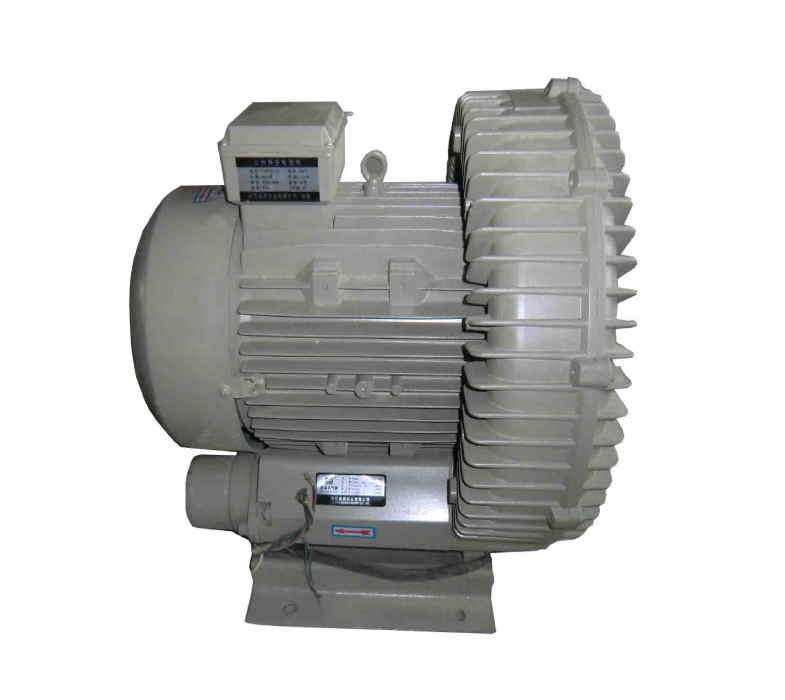

Vacuum adsorption device is optional.

Application

Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold forming and mass cutting. Also the machine can engraving iron, brass, aluminum, plastic and wood boards and the non-metal materials.

Technical Parameters

Download

The following technical details are issued to the best of our knowledge, however, without any responsility for results due to several different kinds of material and application processes. Therefore, we highly recommend that before every usage a test should be conducted on the original material.

Data sheet

Bal screw_High working efficiency

Balls are rotating inside the Ballscrew nut to offer high working efficiency.

It is easy to transmit linear motion into rotation motion.

Automatic lubrication

The lubrication time period can be set in the software, to ensure the accuracy of transmission system, operator just need to set up the time break in the software and keep the oil container full.

Broche HSD Italy

Power S1/S6: 3Kw/6Kw

Connection type: Collet ER32

Rated voltage: 380V

Rated speed: 18.000 rpm

Max speed: 18.000rpm

Rotation: Right

Rack & Pinion System _ YYC

Ensure the transmission high precision, high speed and high stability.

DSP control system

DSP A11

Linear Guideway

The PMI linear guideway is a design of rolling motion with a low friction coeffi cient, and the diff erence between dynamic and static friction is very small.

Therefore, the stick-slip will not occur when submicron feeding is making.
