Feature
Reasonable platform design, 10mm thickness steel plates fixed on the table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame.
The level difference of whole double-decked platform remains in 0-1.5mm.
Panasonic servo motor, Taiwan servo reducer device and high accuracy rack gear transmission.
Starfire control system made in Sino-US joint venture and Germany Design Software FastCAM with auto material saving function.

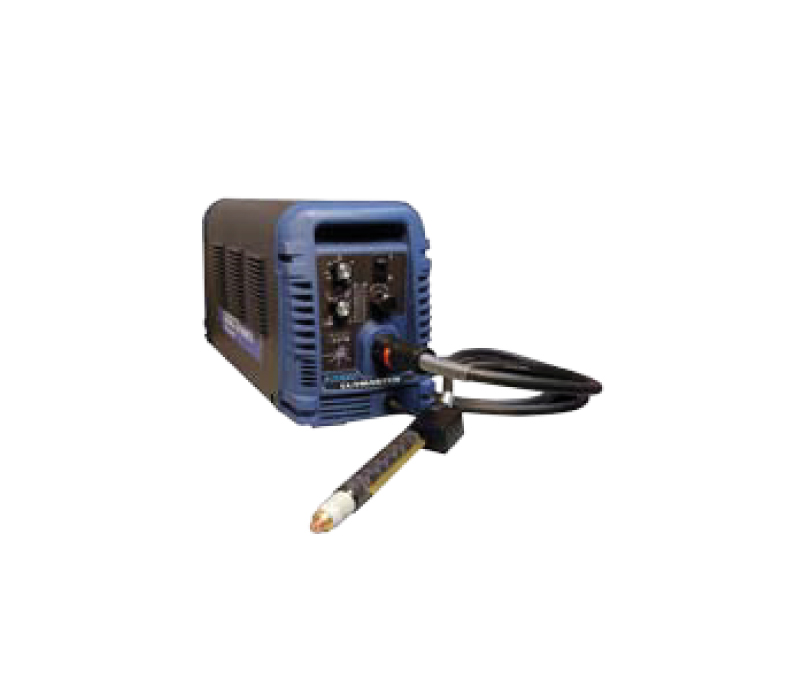

American Cut-Master plasma power supply or American Hypertherm together with high sensitive arc pressure adjuster.
Self-adjusting to choose the best distance between plasma gun and working piece automatically in order to ensure cutting accuracy.
Application
Parts cutting, thickness material and heterotypic sheet cutting.
Détails Techniques
The following technical details are issued to the best of our knowledge, however, without any responsility for results due to several different kinds of material and application processes. Therefore, we highly recommend that before every usage a test should be conducted on the original material.

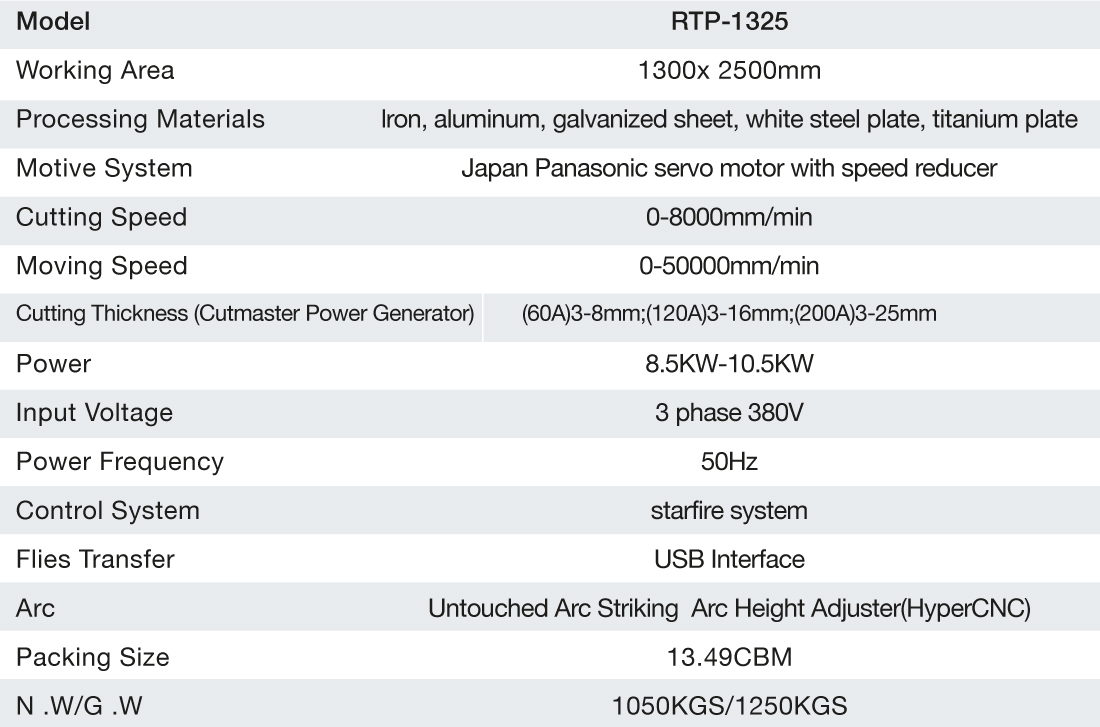

Data sheet

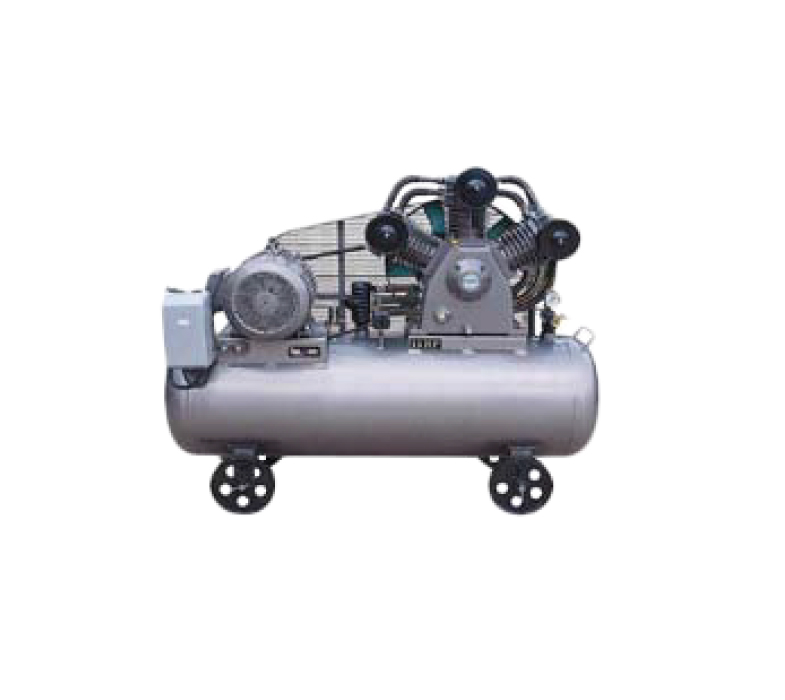

Options
Cutting samples
Demander un devis
Nous reviendrons vers vous le plus tôt possible.
